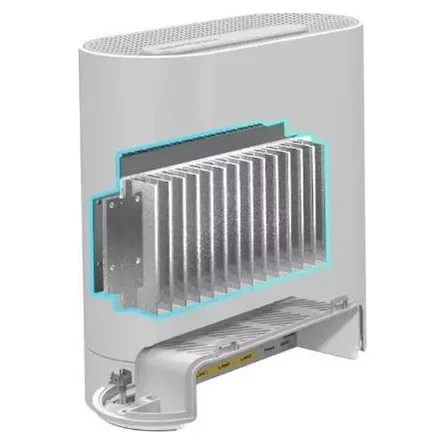

Asus ExpertWiFi EBM68 AX7800 Tri-Band Wi-Fi USB-4G/LTE mesh system (1db)
76 390 Ft
Asus ExpertWiFi EBM68 AX7800 Tri-Band Wi-Fi USB-4G/LTE mesh system (1db)
Rendelhető
76 390 Ft
Egységár: 76 390 Ft/darab
Garancia: 3 Év
Model
ASUS ExpertWiFi EBM68
Model Name
EBM68
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
Product Segment
AX7800 ultimate AX performance : 574+2402+4804Mbps
Data Rate
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) (1024QAM): up to 4333Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz-1) : up to 2402Mbps
WiFi 6 (802.11ax) (5GHz-2) : up to 4804Mbps
Antenna
Internal antenna x 6
Transmit / Receive
2.4GHz 2x2
5GHz-1 2x2
5GHz-2 4x4
Processor
1.7 GHz quad-core processor
Memory
256 MB Flash
1 GB RAM
Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
* The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.
Operating Frequency
2.4 GHz
5 GHz-1
5 GHz-2
Operating Mode
Wireless Router Mode
AiMesh Node Mode
Access Point Mode
I/O Ports
RJ45 for 2.5G BaseT for WAN x 1
RJ45 for Gigabits BaseT for LAN x 3
USB 3.2 Gen 1 x 1
Buttons
WPS Button
Reset Button
Power Switch
LED Indicator
Power x 1
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 3 A current
Mounting
Wall Mount
Package Content
ExpertWiFi EBM68
RJ-45 cable
Power adapter
Warranty card
Quick start guide
Wall-mount kit
Product Weight (g)
808g
Product Dimentions
167x77x186 mm
Remark
Content and color may vary in different regions and packages.
AiMesh
AiMesh
• Primary AiMesh Router
• AiMesh Node
Device Access Control
"Allow you to block access to unwanted websites and apps."
------------------------------------------------------
Web & Apps Filters
Time Scheduling
Reward
Safe Browsing
Customized Internet Schedule
• Maximum Device Access Control Profile :12
• Maximum Device Access Control Content Filter Rule :12
Dashboard
Dashboard
Self-Defined Network
"You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings."
------------------------------------------------------------------------
Self-Defined Network Type
• Employee
• Guest Portal
• Guest Network
• Scheduled Network
• IoT Network
• VPN Network
• Maximum Self-Defined Network Rule :16
VLAN
Captive Portal for Free WiFi
VPN WiFi
WiFi Scheduling: One Time Access
WiFi Scheduling: Weekly Schedule
WiFi share: QR code, PDF file
Bandwidth Limiter
AP isolate
DNS Server Connection
Security
AiProtection
VPN
WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS
Let's Encrypt
DNS-over-TLS
SSH
Firewall
• Maximum Firewall Keyword Filter :64
• Maximum Firewall Network Service Filter :32
• Maximum Firewall URL Filter : 64
AiProtection
AiProtection Pro
• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking
VPN
VPN Client L2PT
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
Support Surfshark
Traffic Control
Adaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Traffic Analyzer
• Website History
WAN
Internet Connection Type
• PPPoE
• PPTP
• L2TP
• Automatic IP
• Static IP
• IPSec
Dual WAN
3G / 4G LTE Dongle
4G / 5G Auto Mobile Tethering
Port Forwarding
Port Triggering
DMZ
DDNS
NAT Passthrough
• PPTP Pass-Through
• L2TP Pass-Through
• IPSec Pass-Through
LAN
DHCP Server
IGMP Snooping
IPTV
LAN Link Aggregation
VLAN
Wireless
UTF-8 SSID
WiFi MAC Address Filter
• Maximum MAC Filters : 64
Wireless Scheduler
USB application
4G / 5G Auto Mobile Tethering
Media Server
Samba Server
FTP Server
Shared Folder Privileges
User Interface
WEB: ASUSWRT
APP: ASUS ExpertWiFi APP
Management
Multiple Site Management
Administration
Configuration Backup and Restore
Diagnosis Tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
