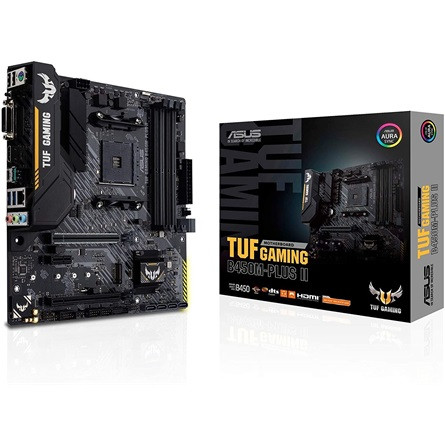

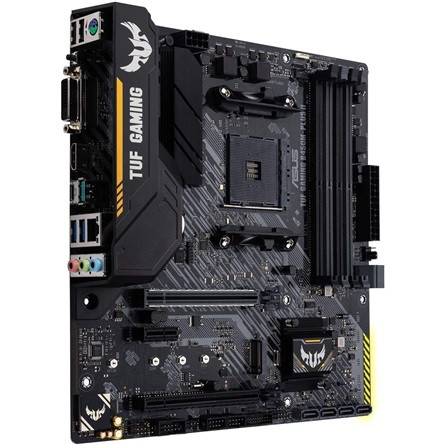

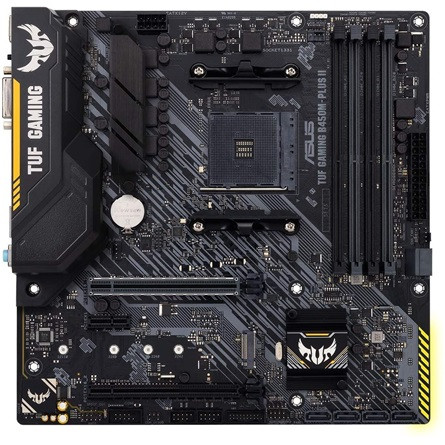

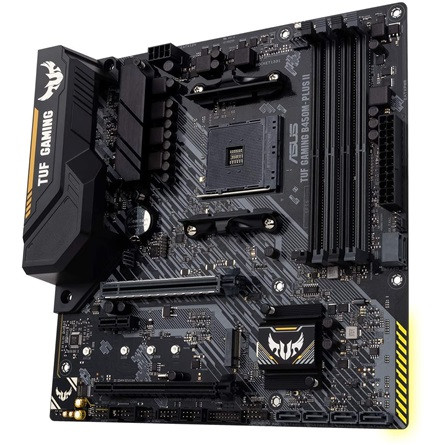

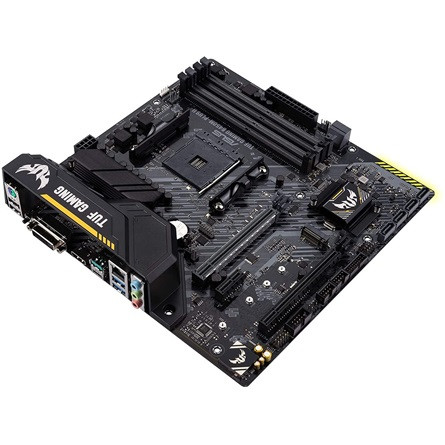

Asus TUF GAMING B450M-PLUS II desktop alaplap microATX

Csomagajánlatok

• Részletek
• Adatok
• Vélemények

Részletek

Garancia: 3 Év

• CPU
  AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors *
  * Refer to www.asus.com for CPU support list
• Chipset
  AMD B450
• Memory
  3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
  4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3533(O.C)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *
  Dual Channel Memory Architecture
  ECC Memory (ECC mode) support varies by CPU.
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * The maximum memory frequency supported varies by processor.
• Graphic
  Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
  1 x HDMI 2.0b
  1 x DVI-D
  *Graphics specifications may vary between CPU types.
• Multi-GPU Support
  Supports AMD 2-Way CrossFireX Technology
• Expansion Slots
  3rd/2nd/1st Gen AMD Ryzen™ Processors
  1 x PCIe 3.0/2.0 x16 (x16 mode)
  2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
  1 x PCIe 3.0/2.0 x16 (x8 mode)
  Athlon™ with Radeon™ Vega Graphics Processors
  1 x PCIe 3.0/2.0 x16 (max at x4 mode)
  AMD B450 chipset
  1 x PCIe 2.0 x16 (x4 mode)
  1 x PCIe 2.0 x1
• Storage
  Total supports 1 x M.2 slot(s) and 6 x SATA 6Gb/s ports
  3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics :
  1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support*¹
  Athlon™ with Radeon™ Vega Graphics Processors :
  1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)*¹
  3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors :
  2 x SATA 6Gb/s port(s),
  Support Raid 0, 1, 10
  AMD B450 chipset :
  4 x SATA 6Gb/s port(s),
  Support Raid 0, 1, 10
• LAN
  Realtek RTL8111H 1Gb Ethernet
  TUF LANGuard
• Audio
  Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC
  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
  Audio Feature :
  - Exclusive DTS Custom for GAMING Headsets.
  - Audio cover
  - Audio Shielding
  - Dedicated audio PCB layers
  - Premium Japanese audio capacitors
• USB Ports
  Rear USB Port ( Total 6 )
  1 x USB 3.2 Gen 2 port(s)(1 x Type-A)
  3 x USB 3.2 Gen 1 port(s)(2 x Type-A +1 x Type-C)
  2 x USB 2.0 port(s)(2 x Type-A)
  Front USB Port ( Total 6 )
  2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
  4 x USB 2.0 port(s)(4 x Type-A)
• Software Features
  ASUS Exclusive Software
  Armoury Crate
  - Aura Creator
  - Aura Sync
  - AI Noise-Canceling Microphone
  AI Suite 3
  - Performance And Power Saving Utility
  TurboV EVO
  EPU
  Digi+ VRM
  Fan Xpert 2+
  - EZ update
  - PC Cleaner
  TUF GAMING CPU-Z
  AI Charger
  ASUS Turbo LAN
  DAEMON Tools
  DTS Custom for GAMING Headsets
  Norton Anti-virus software (Free Trial for 60 days)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode

• ASUS Special Features
  ASUS TUF PROTECTION
  - ASUS DIGI+ VRM
  - ASUS Enhanced DRAM Overcurrent Protection
  - ASUS ESD Guards
  - TUF LANGuard
  - ASUS Overvoltage Protection
  - ASUS SafeSlot
  - ASUS Stainless-Steel Back I/O
  ASUS Q-Design
  - ASUS Q-DIMM
  - ASUS Q-Slot
  ASUS Thermal Solution
  - Aluminum heatsink design
  ASUS EZ DIY
  - BIOS FlashBack™ button
  - BIOS FlashBack™ LED
  AURA Sync
  - AURA RGB header

• Back I/O Ports
  1 x PS/2 keyboard/mouse combo port(s)
  1 x DVI-D
  1 x HDMI
  1 x LAN (RJ45) port(s)
  1 x USB 3.2 Gen 2 (teal blue)Type-A,
  2 x USB 3.2 Gen 1 (blue) Type-A
  1 x USB 3.2 Gen 1 (black) Type-C
  2 x USB 2.0
  3 x Audio jack(s)
  1 x BIOS FlashBack^™ Button(s)
• Internal I/O Ports
  1 x CPU Fan connector(s)
  2 x Chassis Fan connector(s)
  1 x Aura RGB Strip Header
  1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
  1 x SPI TPM header
  6 x SATA 6Gb/s connector(s)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin EATX 12V Power connectors
  1 x Front panel audio connector(s) (AAFP)
  1 x Clear CMOS jumper(s)
  1 x System panel connector
  1 x COM port header
  1 x Speaker connector
• Accessories
  User's manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x Supporting DVD
  1 x TUF Gaming Sticker
  1 x TUF Certification card(s)
  1 x M.2 SSD screw package(s)
• BIOS
  256 Mb Flash ROM, UEFI AMI BIOS
• Man


  Whosting Kft törekszik a weboldalon megtalálható pontos és hiteles információk közlésére. Olykor, ezek tartalmazhatnak téves információkat: a képek tájékoztató jellegűek és tartalmazhatnak tartozékokat, amelyek nem szerepelnek az alapcsomagban, egyes leírások vagy az árak előzetes értesítés nélkül megváltozhatnak a gyártók által, vagy hibákat tartalmazhatnak. A weboldalon található kedvezmények, a készlet erejéig érvényesek.

Adatok

Gyártó:

ASUS

Garancia:

3 év

Garancia mód:

Szervizben

MPN:

TUF GAMING B450M-PLUS II

Tömeg:

1,01 kg/darab
