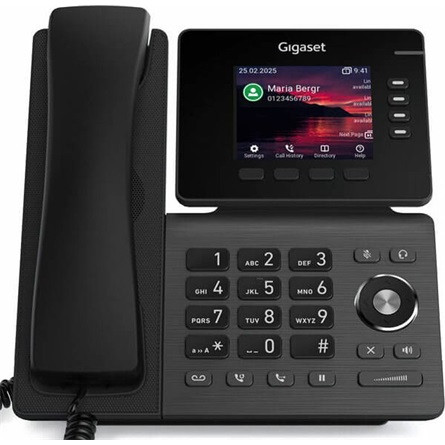

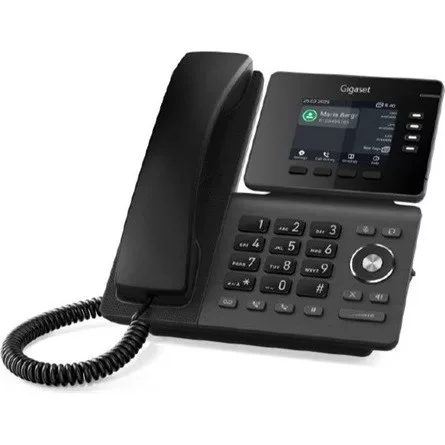

Gigaset P810B IP PRO VoIP telefon fekete

Technical Specifications

Audio

Codecs

• G.711 A-law, u-law

• G.722 (wideband)

• G.723, G.726, G.729ab, GSM 6.10 (FR)

Ringtones • Built-in assignable ringtones

Other features • Comfort noise generator (CNG)

• Voice activity detection (VAD)

Display

Size (inch) • 3.36”

Resolution • 320 x 240 pixel

Type • TFT color display

Keyboard

Keys • 4 context sensitive keys

Keys • 4 programmable line / function keys with multicolor LEDs

Keys • Dedicated keys for: Message, transfer, hold, redial

Keys • Audio keys with LED indication: Mute, speakerphone, headset

Keys • Volume key

Keys • 5-way navigation key

Keys • Cancel key

Network

specifications

Configuration

• SIP (RFC3261)

• DHCP, NTP

• HTTP / HTTPS / TFTP

• HTTPS server / client

• Transport layer security (TLS)

• SRTP (RFC3711), SIPS, RTCP

• 802.1X Authentication and EAPOL

• VPN support

• LLDP-MED, RTCP-XR

• Password-protected web interface

IP • Dual Stack IPv4 / IPv6

• VLAN (IEEE 802.1Q)

Provisioning

• Automatic loading of settings via HTTP / HTTPS / TFTP

• DHCP Options 66/67

• Gigaset Redirect and Provisioning Environment (GRAPE) support

• Remote management via TR-069 / TR-111

• Configurable through web interface

Connectivity

LAN connection

• 2x RJ45-8P8C Gigabit Ethernet ports

• Power over Ethernet (PoE)

• IEEE 802.3af, class 2 / IEEE 802.3az (optional via software)

Bluetooth connection • Bluetooth 5.2 (P810B IP PRO only)

Headset connection • 4P4C; support for Gigaset EHS Adapter (optional accessory)

USB connection • 1x USB 2.0 host port, Type A, Hi / Full / Low-speed

Handset • Hearing aid compatible (HAC) handset

Interoperability • Interoperable with all major IP PBX platforms

Phonebook

Contacts • LDAP (Directory)

• XML browser

Address book • Local directory with 1000 entries

Telephony

VoIP • 12 SIP identities / accounts

Call groups • 3-way conferencing on the phone

Localization • Language, time, dial tone

Other features • Menu-driven user interface

• Multiple language support

Dial functions Functions

• Call forwarding

• Caller identification

• Call waiting

• Call lists for dialed, received, missed calls

• Call completion (busy / unreachable) (if supported by PBX)

• Call park, call unpark (if supported by PBX)

• Speed dialing

• Hold

• Music on hold (if supported by PBX)

• Automatic redial on busy

• Auto-answer

• Blind and attended transfer

• Extension monitoring, call pickup (if supported by PBX)

• Multicast paging

• URL dialing

• Local dial plan

• Client matter code (CMC) (if supported by PBX)

Dialing procedure • DTMF in-band / out-of-band / SIP-INFO

Call protection

Blocking list • Call blocking (deny list)

• DND mode (do not disturb)

Dial lock • Keyboard lock

Signaling &

display indications

Incoming calls • Red LED for call indication / message waiting

Power

Power supply • PoE or 5Vdc power adapter (optional accessory), 10 Watts

Input voltage • 5V DC (SELV)

Dimensions &

weights

Desk phone

• Without foot stand: 210 mm x 199 mm x 45 mm

• With foot stand: 193 mm x 199 mm x 158 mm

• Weight (approximately): 890 g (with footstand)

Ordering

information

Color • Black

Environmental

conditions

Ambient temperature • 0°C to 35°C (32°F to 95°F)

Storage temperature • -10°C to 45°C (14°F to 113°F)

Humidity • 5% to 95% (non-condensing)

Accessories

Key module • Gigaset P800 KEY PRO for additional

freely programmable function keys

EHS adapter • Gigaset EHS Adapter

Power adapter • Gigaset 5Vdc power adapter

Scope of delivery

1x • Desk phone

1x • Foot stand

1x • Handset with cord

1x • Quick Start Guide
