StarTech 10/100Mbps USB print server

Kifutott

Nem vásárolható!

This palm-sized print server makes it easy to share a USB printer with users on your network. It’s the ideal solution for home or small office networks.

Reliable, cost-efficient network printing

Enjoy cost-efficient network printing for multiple users. The USB 10/100 Mbps print server lets you share one USB printer with multiple users on your network, instead of having to buy separate printers for each individual workstation.

Place your shared printer in a convenient location

With web-based management, you can set up and monitor the printer server through a web browser, so you can place your printer at any convenient shared location - there’s no need to put your printer next to your computer. You can send print jobs to another user in your home or office, or even to a printer in another country.

Easy to use and install

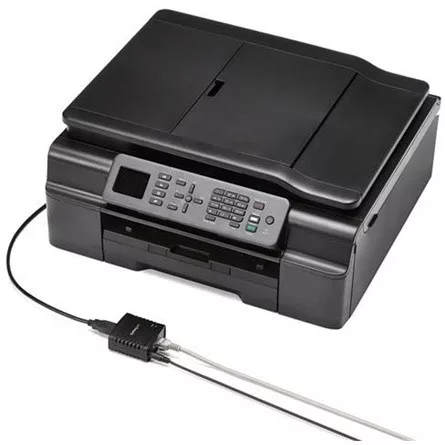

Compact and lightweight, the print server is easy to install with its straightforward installation wizards and remote web-based management. You simply use a USB cable to connect the print server to your printer’s USB port, then use an RJ45 networking cable to connect it to the rest of your network.

Supports LPR network printing and Bonjour Print Services

The printer server supports the Line Printer Remote (LPR) protocol which enables Internet printing. It also supports Bonjour Print Services, making it easier to find and configure printers on your network.

Hardware
Chipset ID	EST2862B
Industry Standards	Compliant with IEEE 802.3 10BASE-T and IEEE 802.3u 100BASE-TX
Ports	1
Performance
Auto MDIX	Yes
Full Duplex Support	Yes
Jumbo Frame Support	9K max.
Max Distance	100 m / 330 ft
Maximum Data Transfer Rate	100 Mbps
Remote Management Ability	Yes
Supported Protocols	LPR
Connector(s)
External Ports	1 - RJ-45 Female
	1 - USB A (4 pin) Female
Software
OS Compatibility	Windows® XP, 7, 8 / RT, 10 Windows Server® 2003, 2008 R2, 2012 Mac OS® 10.6 to 10.10
Special Notes / Requirements
Note	OS Compatibility refers to the included software only - the Print Server itself can be used without software on most platforms that support network printing
System and Cable Requirements	Printer with USB connection
	USB printer cable not included
Indicators
LED Indicators	1 - Power
	1 - Link
	1 - Activity
Power
Center Tip Polarity	Positive
Input Current	0.3
Input Voltage	100 ~ 240 AC
Output Current	1A
Output Voltage	5 DC
Plug Type	B
Power Consumption	200mA
Power Source	AC Adapter Included
Environmental
Humidity	10% ~ 90% RH
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-10°C to 70°C (14°F to 158°F)
Physical Characteristics
Color	Black
Enclosure Type	Plastic
Product Height	23 mm [0.9 in]
Product Length	53 mm [2.1 in]
Product Weight	62 g [2.2 oz]
Product Width	54 mm [2.1 in]
Packaging Information
Shipping (Package) Weight	326 g [11.5 oz]

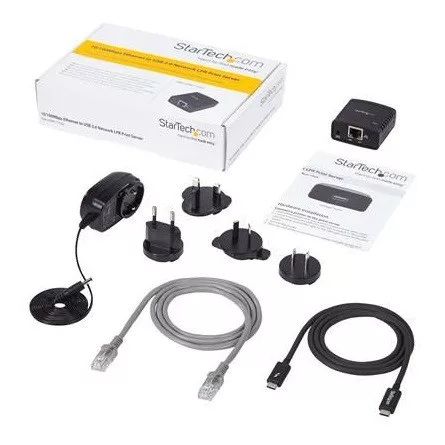

What's in the Box
Included in Package	1 - USB 2.0 network LPR print server
	1 - universal power adapter (NA / UK / EU, AU)
	1 - RJ45 network cable
	1 - quick start guide
	1 - software CD

Részletek

This palm-sized print server makes it easy to share a USB printer with users on your network. It’s the ideal solution for home or small office networks.

Reliable, cost-efficient network printing

Place your shared printer in a convenient location

Easy to use and install

Supports LPR network printing and Bonjour Print Services

Hardware
Chipset ID	EST2862B
Industry Standards	Compliant with IEEE 802.3 10BASE-T and IEEE 802.3u 100BASE-TX
Ports	1
Performance
Auto MDIX	Yes
Full Duplex Support	Yes
Jumbo Frame Support	9K max.
Max Distance	100 m / 330 ft
Maximum Data Transfer Rate	100 Mbps
Remote Management Ability	Yes
Supported Protocols	LPR
Connector(s)
External Ports	1 - RJ-45 Female
	1 - USB A (4 pin) Female
Software
OS Compatibility	Windows® XP, 7, 8 / RT, 10 Windows Server® 2003, 2008 R2, 2012 Mac OS® 10.6 to 10.10
Special Notes / Requirements
Note	OS Compatibility refers to the included software only - the Print Server itself can be used without software on most platforms that support network printing
System and Cable Requirements	Printer with USB connection
	USB printer cable not included
Indicators
LED Indicators	1 - Power
	1 - Link
	1 - Activity
Power
Center Tip Polarity	Positive
Input Current	0.3
Input Voltage	100 ~ 240 AC
Output Current	1A
Output Voltage	5 DC
Plug Type	B
Power Consumption	200mA
Power Source	AC Adapter Included
Environmental
Humidity	10% ~ 90% RH
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-10°C to 70°C (14°F to 158°F)
Physical Characteristics
Color	Black
Enclosure Type	Plastic
Product Height	23 mm [0.9 in]
Product Length	53 mm [2.1 in]
Product Weight	62 g [2.2 oz]
Product Width	54 mm [2.1 in]
Packaging Information
Shipping (Package) Weight	326 g [11.5 oz]
What's in the Box
Included in Package	1 - USB 2.0 network LPR print server
	1 - universal power adapter (NA / UK / EU, AU)
	1 - RJ45 network cable
	1 - quick start guide
	1 - software CD

Whosting Kft törekszik a weboldalon megtalálható pontos és hiteles információk közlésére. Olykor, ezek tartalmazhatnak téves információkat: a képek tájékoztató jellegűek és tartalmazhatnak tartozékokat, amelyek nem szerepelnek az alapcsomagban, egyes leírások vagy az árak előzetes értesítés nélkül megváltozhatnak a gyártók által, vagy hibákat tartalmazhatnak. A weboldalon található kedvezmények, a készlet erejéig érvényesek.

Adatok

Gyártó:

StarTech

Garancia:

2 év

Garancia mód:

Szervizben

MPN:

PM1115U2

Mélység:

54 mm

Szélesség:

53 mm

Lapkakészlet:

EST2862B

USB 2.0:

Tanúsítványok:

CE, FCC

Adatátviteli sebesség:

100 Mbit/s

Modell:

10/100Mbps USB

Magasság:

23 mm

LAN adatátviteli sebesség:

100 Mbps

Termék színe:

Fekete

Ethernet LAN (RJ-45) portok:

Támogatott hálózati protokollok:

LPR

Tárolási hőmérséklettartomány (T-T):

0 - 40 °C

Relatív üzemi páratartalom-tartomány:

10 - 90%

Kábelek mellékelve:

LAN (RJ-45)

Hálózati szabvány:

IEEE 802.3, IEEE 802.3u

DC-bemeneti jackdugó:

Igen

Támogatott Windows operációs rendszerek:

Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x6...

Támogatott Mac operációs rendszerek:

Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10....

Réz ethernet kábelezési technológia:

10BASE-T, 100BASE-TX

Bemeneti áram:

0.3 A

LED-kijelzők:

Adatforgalom, Link, Biztosított áramellátás

Használati útmutató:

Igen

Webalapú kezelés:

Igen

Belső:

Nincs

Beépített kijelző:

Nincs

Külső áramszolgáltató:

Nincs

Bekapcsolt állapotjelző LED:

Igen

Megfelelőségi tanúsítványok:

RoHS

Fő tulajdonság:

nyomtatószerver

Csomagolás szélessége:

149 mm

Csomagolás mélysége:

215 mm

Csomagolás magassága:

54 mm

LAN (100Mb/s):
