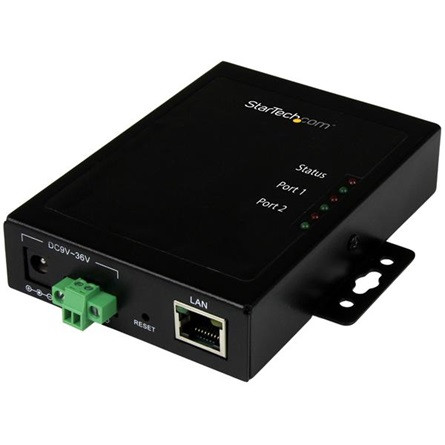

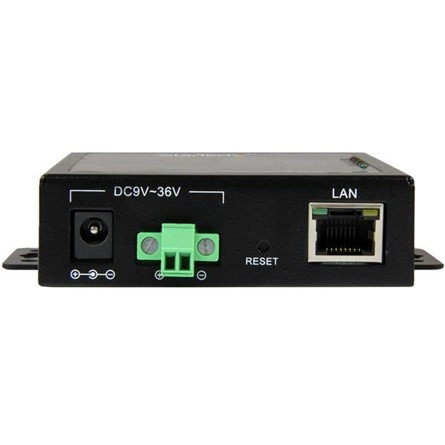

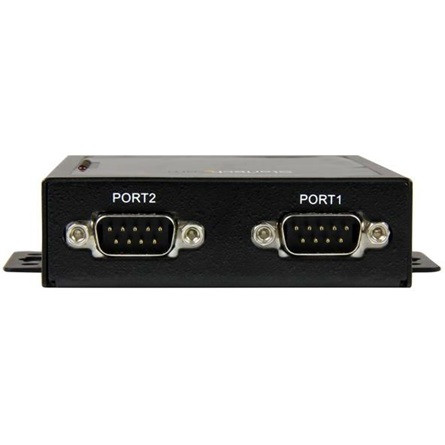

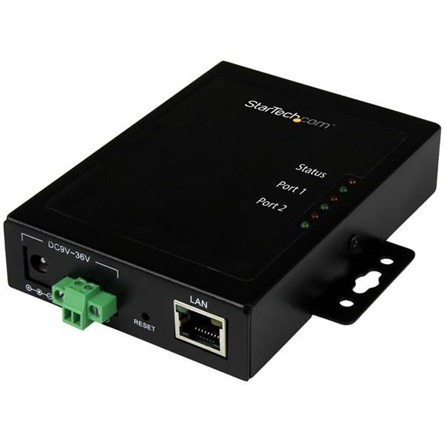

StarTech 2-Port Serial Device Server
StarTech 2-Port Serial Device Server
142 650 Ft
  1. Hálózati kártya
  1. Hálózat
  2. Hálózati kártya

StarTech 2-Port Serial Device Server

Cikkszám:
NETRS2322P
StarTech 2-Port Serial Device Server
StarTech 2-Port Serial Device Server
StarTech 2-Port Serial Device Server
StarTech 2-Port Serial Device Server
StarTech 2-Port Serial Device Server
StarTech 2-Port Serial Device Server
StarTech 2-Port Serial Device Server
StarTech 2-Port Serial Device Server
Rendelhető
142 650 Ft
Egységár: 142 650 Ft/darab1

This 2-port serial device server is a cost-effective way to remotely connect to and manage two serial devices over your typical IP network. The device server integrates two RS232 ports into a rugged metal housing with an extended operating temperature range, so it’s perfect for factory and industrial settings.

Flexible installation, in a range of environments

If you’re looking for a reliable serial-over-IP control solution, then this device server can help. With a rugged metal housing and an extended operating temperature range, you can rest assured that the device server can deliver the reliable performance you need, even in harsh environments.

Plus, it features two integrated mounting brackets, so you can mount the device server to a surface or a wall as needed, for out-of-the-way installations.

Backup power keeps your devices connected

With redundant power input, this dual-port serial device server ensures seamless operation, even in the event of power dips or failures. It features a wide-range, terminal block power input (9~36V DC), and includes a universal power adapter.

Because it features two power inputs, if you experience a power disruption the device server automatically switches to its secondary power source. With redundant power input, the device server remains operational if one of the power sources fails, so you can continue to connect to and manage your serial devices when needed.

Hardware
Industry Standards IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX
Interface Serial
Ports 2
Performance
Auto MDIX Yes
Auto-Negotiation Yes
Compatible Networks 10/100 Mbps
Data Bits 7, 8
Flow Control XON/XOFF, RTS/CTS, None
Full Duplex Support Yes
Isolation 2500 Vrms
Max Baud Rate 460.8 Kbps
Parity None, Even, Odd, Space, Mark
Remote Management Ability Yes
Serial Protocol RS-232
Supported Protocols ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet
Surge Protection ESD (Electrostatic Discharge) Protection:

15kV Human Body Model (HBM)
15kV IEC1000-4-2 Air
8kV IEC1000-4-2 Contact
Connector(s)
Connector Type(s) 2 - DB-9 (9 pin; D-Sub) Male
  1 - RJ-45 Female
  1 - Terminal Block (2 Wire)
Software
OS Compatibility Virtual COM software - Windows® Only:
Windows 10 (32-bit or 64-bit), 8 / 8.1 (32-bit or 64-bit), 7 (32-bit or 64-bit), Vista (32-bit or 64-bit)
Windows Server® 2012, 2008 R2

Note: The device server’s hardware is compatible with Mac OS and Linux®; however, the provided Virtual COM software is not compatible with these operating systems.
When used with a Mac or Linux operating system, the device server can only be configured using the Web-GUI.
Indicators
LED Indicators 2 - Status
  2 - Port 1
  2 - Port 2
  1 - 10/100Mbps LAN
  1 - Link / Activity
Power
Center Tip Polarity Positive
Input Current 1.5 A
Input Voltage 100 ~ 240 AC
Output Current 3 A
Output Voltage 12 DC
Power Consumption 36 W Max
Power Source AC Adapter Included
Environmental
Humidity 20~80% RH (Non-condensing)
Operating Temperature 0°C to 85°C (32°F to 185°F)
Storage Temperature -45°C to 130°C (-49°F to 266°F)
Physical Characteristics
Color Black
Enclosure Type Steel
Product Height 0.9 in [23 mm]
Product Length 4.4 in [112 mm]
Product Weight 11.3 oz [320 g]
Product Width 3.2 in [81 mm]
Packaging Information
Shipping (Package) Weight 24.2 oz [685 g]
What's in the Box
Included in Package 1 - 2-port serial device server
  1 - terminal block (2-wire)
  1 - universal power adapter (NA/EU/UK/AU)
  1 - software CD
  1 - quick start guide
