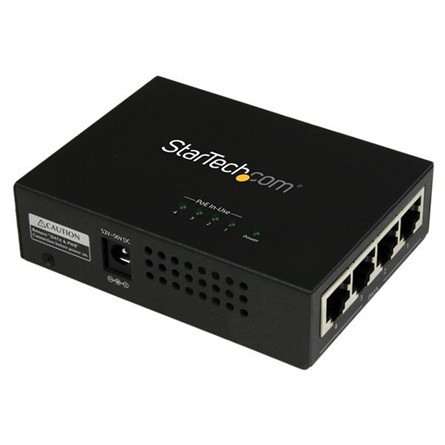

StarTech 4-Port Gigabit Midspan 30W PoE injector 802.3at/af

95 400 Ft

StarTech 4-Port Gigabit Midspan 30W PoE injector 802.3at/af

Name: StarTech 4-Port Gigabit Midspan 30W PoE injector 802.3at/af
Brand: StarTech
SKU: POEINJ4G
Price: 95400 HUF
Availability: InStock

Rendelhető

95 400 Ft

Egységár: 95 400 Ft/darab

This Gigabit midspan PoE+ injector is a cost-effective alternative to upgrading your existing network switch to a PoE-capable model.

It supplies up to 30 Watts output to each port, so you can easily power and access up to four high-power PoE-compliant devices — such as IP cameras — using standard Ethernet cable.

Power over Ethernet injector connected to a network switch and four PoE-powered devices (PD)

More power, with less cost and hassle

This versatile midspan PoE+ injector is suited for almost all PoE device classes, including wireless access points, as well as IP phones and cameras. The high-power PoE+ injector offers 120W total power distribution and delivers full power — up to 30.8W — from each port. Now, you can easily scale and power your PoE+ devices across long distances, even in remote locations where a typical power outlet is unavailable.

Plus, the cost-effective Power over Ethernet+ injector lets you connect your PoE-powered devices (PDs) to a non-PoE-capable switch, avoiding the expense and aggravation of upgrading your existing switch to a PoE-enabled model.

Easy to set up in mixed environments

This injector is the perfect solution for a variety of environments. It features a wall-mountable rugged metal casing, but is palm-sized making it perfect for desktop placement too.

With plug-and-play operation, you can enjoy fast and hassle-free setup without disrupting your workflow.

Convenient, protected connections

Not sure which class your PoE devices are? The Gigabit midspan PoE+ injector automatically detects the power requirements of your PoE PDs, and delivers the appropriate level of power without damaging your devices.

With integrated circuit protection between each port, your devices are also protected from power interference.

The POEINJ4G is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Hardware
Industry Standards	IEEE 802.3af PoE, IEEE 802.3at PoE+
	IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T)
Ports	4
Performance
Maximum Cable Length	328 ft [100 m]
Maximum Data Transfer Rate	2 Gbps (Full-Duplex)
MTBF	50,000 Hours
Power Output	52V DC at 30.8W (PoE+)
Connector(s)
Connector Type(s)	8 - RJ-45 Female
Special Notes / Requirements
Patents and Licenses	The following patents are licensed for this product. This list might not be all inclusive. • United States Patent No. 5,406,260 (expired) • United States Patent No. 6,650,622 • United States Patent No. 7,457,250 • United States Patent No. 8,155,012 • United States Patent No. 8,902,760 • United States Patent No. 8,942,107 • United States Patent No. 9,019,838 • United States Patent No. 9,049,019 • United States Patent Application No. 14/695,456 • United States Patent Application No. 14/726,940
System and Cable Requirements	If your connected devices do not meet the IEEE 802.3af or IEEE 802.3at PoE standard, then the POEINJ4G will not inject power to the connected device(s) / Ethernet cable(s)
Indicators
LED Indicators	1 - Power
	4 - PoE In-Use
Power
Center Tip Polarity	Positive
Input Current	2-1 A
Input Voltage	100 ~ 240 AC
Output Current	2.31 A
Output Voltage	52 DC
Plug Type	M
Power Consumption	120 W Max
Power Source	AC Adapter Included
Environmental
Humidity	5~95% RH (Non-Condensing)
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-10°C to 70°C (14°F to 158°F)
Physical Characteristics
Color	Black
Enclosure Type	Steel
Product Height	3.5 in [90 mm]
Product Length	6.7 in [170 mm]
Product Weight	7.2 oz [204 g]
Product Width	11.8 in [300 mm]
Packaging Information
Shipping (Package) Weight	3.5 lb [1.6 kg]
What's in the Box
Included in Package	1 - 4 Port Gigabit PoE+ Injector
	1 - Universal Power Adapter
	3 - Power Cords (NA/UK/EU/AU)
	1 - Instruction Manual

Részletek

This Gigabit midspan PoE+ injector is a cost-effective alternative to upgrading your existing network switch to a PoE-capable model.

It supplies up to 30 Watts output to each port, so you can easily power and access up to four high-power PoE-compliant devices — such as IP cameras — using standard Ethernet cable.

More power, with less cost and hassle

Easy to set up in mixed environments

This injector is the perfect solution for a variety of environments. It features a wall-mountable rugged metal casing, but is palm-sized making it perfect for desktop placement too.

With plug-and-play operation, you can enjoy fast and hassle-free setup without disrupting your workflow.

Convenient, protected connections

With integrated circuit protection between each port, your devices are also protected from power interference.

The POEINJ4G is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Hardware
Industry Standards	IEEE 802.3af PoE, IEEE 802.3at PoE+
	IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T)
Ports	4
Performance
Maximum Cable Length	328 ft [100 m]
Maximum Data Transfer Rate	2 Gbps (Full-Duplex)
MTBF	50,000 Hours
Power Output	52V DC at 30.8W (PoE+)
Connector(s)
Connector Type(s)	8 - RJ-45 Female
Special Notes / Requirements
Patents and Licenses	The following patents are licensed for this product. This list might not be all inclusive. • United States Patent No. 5,406,260 (expired) • United States Patent No. 6,650,622 • United States Patent No. 7,457,250 • United States Patent No. 8,155,012 • United States Patent No. 8,902,760 • United States Patent No. 8,942,107 • United States Patent No. 9,019,838 • United States Patent No. 9,049,019 • United States Patent Application No. 14/695,456 • United States Patent Application No. 14/726,940
System and Cable Requirements	If your connected devices do not meet the IEEE 802.3af or IEEE 802.3at PoE standard, then the POEINJ4G will not inject power to the connected device(s) / Ethernet cable(s)
Indicators
LED Indicators	1 - Power
	4 - PoE In-Use
Power
Center Tip Polarity	Positive
Input Current	2-1 A
Input Voltage	100 ~ 240 AC
Output Current	2.31 A
Output Voltage	52 DC
Plug Type	M
Power Consumption	120 W Max
Power Source	AC Adapter Included
Environmental
Humidity	5~95% RH (Non-Condensing)
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-10°C to 70°C (14°F to 158°F)
Physical Characteristics
Color	Black
Enclosure Type	Steel
Product Height	3.5 in [90 mm]
Product Length	6.7 in [170 mm]
Product Weight	7.2 oz [204 g]
Product Width	11.8 in [300 mm]
Packaging Information
Shipping (Package) Weight	3.5 lb [1.6 kg]
What's in the Box
Included in Package	1 - 4 Port Gigabit PoE+ Injector
	1 - Universal Power Adapter
	3 - Power Cords (NA/UK/EU/AU)
	1 - Instruction Manual

Whosting Kft törekszik a weboldalon megtalálható pontos és hiteles információk közlésére. Olykor, ezek tartalmazhatnak téves információkat: a képek tájékoztató jellegűek és tartalmazhatnak tartozékokat, amelyek nem szerepelnek az alapcsomagban, egyes leírások vagy az árak előzetes értesítés nélkül megváltozhatnak a gyártók által, vagy hibákat tartalmazhatnak. A weboldalon található kedvezmények, a készlet erejéig érvényesek.

Adatok

Gyártó:

StarTech

Garancia:

2 év

Garancia mód:

Szervizben

MPN:

POEINJ4G

Mélység:

170 mm

PoE portok:

Szélesség:

300 mm

Típus:

Hálózati adóegység

Tanúsítványok:

CE, FCC

Adatátviteli sebesség:

2000 Mbit/s

Maximális kimeneti feszültség:

52 V

Modell:

4-Port Gigabit Midspan

Kimeneti áram:

2,31 A

Magasság:

90 mm

Termék színe:

Fekete

Ethernet LAN (RJ-45) portok:

Üzemi hőmérséklettartomány (T-T):

0 - 50 °C

Tárolási hőmérséklettartomány (T-T):

-10 - 70 °C

Relatív üzemi páratartalom-tartomány:

5 - 95%

Kábelezési technológia:

10/100/1000Base-T(X)

Kábelek mellékelve:

AC adapter mellékelve:

Igen

Hálózati szabvány:

IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u

DC-bemeneti jackdugó:

Igen

Automatikus egyeztetés:

Igen

Ethernet-áramellátás (PoE) támogatása:

Igen

LED-kijelzők:

PoE, Biztosított áramellátás

AC bemeneti feszültség:

100 - 240 V

Teljesítményfelvétel (max.):

120 W

Készülékház anyaga:

Acél

Meghibásodások közötti átlagos idő (MTBF):

50000 ó

Dugótípus:

M típus

Maximális átviteli távolság:

100 M

Kettős rendszer:

Teljes körű

Auto MDIX IEEE:

Igen

Energiafelhasználás:

Felhasználói kézikönyv:

Igen

Megfelelőségi tanúsítványok:

RoHS

Fő tulajdonság:

PoE injector

Csomagolás szélessége:

180 mm

Csomagolás mélysége:

305 mm

Csomagolás magassága:

90 mm

LAN (1Gb/s):

Tömeg:

204 g/darab
