The SV831DUSBAU 8 Port Rack Mount USB VGA KVM Switch (with Audio Cables Included) allows you to control up to 8 USB computers using a single keyboard, mouse and monitor, and features Audio and Microphone ports to switch between audio signals as well as PC ports.

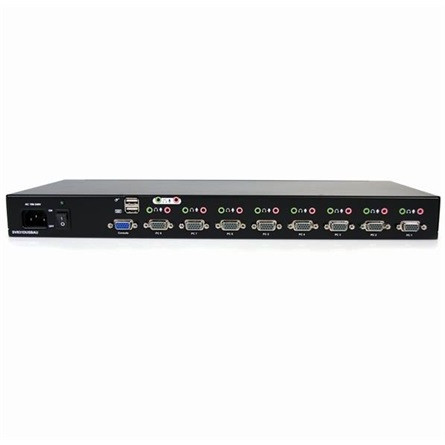

Based on a 1U rack mountable slim form factor design, this 8 Port USB KVM uses rear cable connections to maximize space efficiency. Multiple KVM units can also be connected (cascaded) together for control of up to 64 computers, ensuring a scalable KVM solution that can be expanded as necessary.

To ensure seamless operation, the switch features automatic and manual scan modes, supports both hot-key and front panel push-button switching, and features a convenient OSD (on-screen display) for added configuration options.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

Hardware
Audio	Yes
Cables Included	No
Daisy-Chain	Yes
KVM Ports	8
Multi-Monitor	No
PC Interface	USB
PC Video Type	VGA
Rack-Mountable	Yes
U Height	1U
Performance
Hot-Key Selection	Yes
IP Control	No
Maximum Analog Resolutions	1920 x 1440@60Hz (1920 x 1200@60Hz - Wide Screen)
Maximum Cascaded Computers	64
Maximum Number of Users	1
Port Selection Support	Push Button, Hotkeys, and OSD (On Screen Display)
Wide Screen Supported	Yes
Connector(s)
Console Interface(s)	1 - VGA (15 pin; High Density D-Sub) Female
	2 - 3.5 mm Mini-Jack (3 Position) Female
	2 - USB A (4 pin) Female
Host Connectors	16 - 3.5 mm Mini-Jack (3 Position) Female
	8 - VGA (15 pin; High Density D-Sub) Female
Software
OS Compatibility	OS independent; No software or drivers required
Special Notes / Requirements
Note	Package includes eight 6ft. green audio cables and eight 6ft. red microphone cables. Other lengths and options are available on the accessories page.
Indicators
LED Indicators	1 - Green - Power
	8 - Green - Online PC
	8 - Red - Selected PC
Power
Center Tip Polarity	Positive
Input Current	1.8A
Input Voltage	110 ~ 240 AC
Output Current	4A
Output Voltage	12 DC
Plug Type	M
Power Source	AC Adapter Included
Environmental
Humidity	80% RH
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Physical Characteristics
Color	Black
Enclosure Type	Steel
Product Depth	7.1 in [180 mm]
Product Height	1.8 in [45 mm]
Product Weight	91.8 oz [2600 g]
Product Width	21.3 in [540 mm]
Packaging Information
Shipping (Package) Weight	10.3 lb [4.7 kg]
What's in the Box
Included in Package	1 - StarView 8 Port USB KVM Switch
	2 - Mounting Brackets
	8 - 6ft. Green Audio Cables and Red Microphone Cables (16 in Total)
	4 - Foot Pad
	1 - Power Cord
	1 - User Manual
