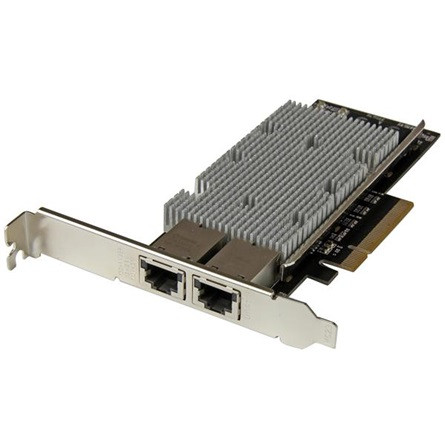

StarTech Dual Port 10Gb/s PCIe x8 Dual RJ45 hálózati adapter low profile

StarTech Dual Port 10Gb/s PCIe x8 Dual RJ45 hálózati adapter low profile
Kifutott

Now, you can add 10 GbE networking, while minimizing your deployment costs. This 10Gbase-T network card (NIC) lets you add two RJ45 ports through a single PCI Express slot, to deliver reliable high-speed network connections to your workstations and servers without draining your budget.

Versatile and cost effective

Compatible with a broad range of operating systems, this versatile dual-port NIC is ideal for many business applications that require upgrades to servers or workstations. It’s a cost-effective way to enhance your server or computer capabilities by adding two powerful 10-Gigabit Ethernet ports, with support for advanced features such as VLAN tagging, jumbo frames, Wake-On LAN and Auto-MDIX.

Reliable, high-performance connectivity

This 2-port PCI Express 10GBase-T network card features the Intel® X540 chipset, designed to deliver the power, performance and enhanced capabilities you need for reliable network connections to your server or computer. The X540 chipset provides many advanced features including Intel® Virtualization Technology for connectivity and PXE network boot support.

Compliant with IEEE 802.3/u/ab standards, the network card delivers a dependable way to upgrade or replace your existing network ports with dual 100/1000/10G compatible RJ45 ports, providing throughput capability of up 10Gbps in each direction (20Gbps total). It connects through a single, four-lane (x4 or higher) PCI Express slot.

Easy installation

With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped for installation in a full-sized chassis, and includes a low-profile/half-height installation bracket that you can use as needed.

The ST20000SPEXI is backed by a StarTech.com 2-year warranty and free lifetime technical support.




Bus Type PCI Express
Card Type Standard Profile (LP bracket incl.)
Chipset ID Intel X540
Industry Standards IEEE 802.3an (10GBASE-T), IEEE 802.3ab (1GBASE-T), IEEE 802.3u (100BASE-T), IEEE 802.3az (EEE - Energy Efficient Ethernet)
PCI Express Rev 2.0
Interface RJ45 (10 Gigabit Ethernet)
Port Style Integrated on Card
Ports 2
Performance
Auto MDIX Yes
Compatible Networks 100/1000/10000 Mbps (10Gb)
Full Duplex Support Yes
Jumbo Frame Support 15K max.
Maximum Data Transfer Rate 20Gbps (full-duplex), 10Gbps (half-duplex)
Supported Protocols IEEE 802.3ad (link aggregation), IEEE 802.1q (VLAN tagging)
Connector(s)
Connector Type(s) 1 - PCI Express x8 Male
External Ports 2 - RJ-45 Female
Software
OS Compatibility Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64)
Windows Server® 2012, 2012 R2, 2008 R2
Linux 2.4.x/ 2.6.x / 3.x (Tested up to 3.5)
ESXi 5.1/5.5
Special Notes / Requirements
System and Cable Requirements Available PCI Express x4 slot
Indicators
LED Indicators 2 - Link Speed
  2 - Link Activity
Environmental
Humidity 20~80% RH
Operating Temperature 5°C to 50°C (41°F to 122°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Physical Characteristics
Color Black
Product Height 4.7 in [120 mm]
Product Length 6.4 in [163 mm]
Product Weight 5.6 oz [160 g]
Product Width 0.8 in [20 mm]
Packaging Information
Shipping (Package) Weight 8.8 oz [250 g]
What's in the Box
Included in Package 1 - PCI Express 10GBase-T Ethernet card
  1 - low-profile bracket
  1 - instruction manual
