StarTech PCI-E x4 10/100/1000Mbps hálózati kártya PSE / PoE
173 410 Ft
StarTech PCI-E x4 10/100/1000Mbps hálózati kártya PSE / PoE
Raktáron 8 darab
173 410 Ft
Egységár: 173 410 Ft/darab
Külső raktár
8 darab
Szállítási idő: 5-14 munkanap

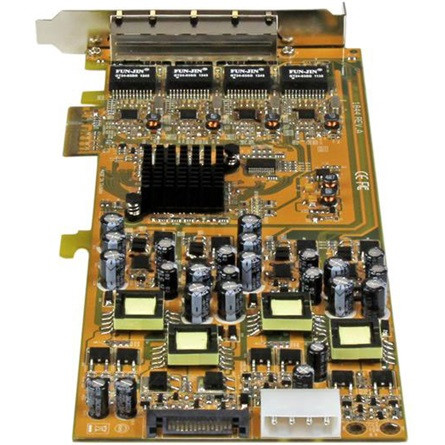

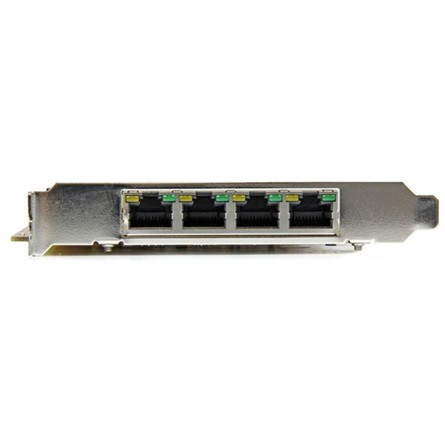

The ST4000PEXPSE 4-Port PoE NIC lets you add four Gigabit Power over Ethernet ports through a single PCI Express slot. Each port can provide up to 25.5W of power, combining network data and power over a single Ethernet cable for reduced cable clutter and added convenience for remote PoE devices.
The PCI express PoE card supports the IEEE 802.3at (Type 1 and 2) standard for Power Sourcing Equipment (PSE), and can deliver up to 48V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and data connection for PoE devices such as IP cameras, IP phones or wireless access points.
Suitable for any standard profile PCIe-enabled client, server or workstation, the PoE network card supports features such as Jumbo Frames (up to 9KB), VLAN tagging and Wake on LAN (WoL).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Position your network devices where power outlets aren’t available, with 25.5 Watts per-port PoE output
- Reduce expenses by using existing standard Cat5 (or better) Ethernet cabling to deliver power and data
- Optimize network traffic with support for advanced features, like Jumbo Frames and VLAN tagging
| Bus Type | PCI Express |
| Card Type | Standard Profile |
| Chipset ID | Realtek - RTL8111E |
| Industry Standards | IEEE 802.3at, 802.3af, 802.3, 802.3u, 802.3ab, 802.3az Draft 2.2 Energy-Efficient Ethernet (EEE), 802.1q VLAN tagging, 802.1p Layer 2 Priority Encoding and 802.3x Full Duplex Flow Control |
| Interface | RJ45 (Gigabit Ethernet) |
| Port Style | Integrated on Card |
| Ports | 4 |
| Performance | |
|---|---|
| Auto MDIX | Yes |
| Buffer Size | 48 KB |
| Compatible Networks | 10/100/1000 Mbps |
| Full Duplex Support | Yes |
| Jumbo Frame Support | 9K max. |
| Maximum Data Transfer Rate | 2000 Mbps (Full-duplex) |
| Connector(s) | |
| Connector Type(s) | 1 - PCI Express x4 Male |
| External Ports | 4 - RJ-45 Female |
| Internal Ports | 1 - LP4 (4 pin; Molex Large Drive Power) Male |
| 1 - SATA Power (15 pin) Plug | |
| Software | |
| OS Compatibility | Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista(32/64), XP(32/64) Windows Server® 2012, 2008 R2, 2003(32/64) Linux 2.4.x and later |
| Special Notes / Requirements | |
| Patents and Licenses | The following patents are licensed for this product. This list might not be all inclusive. • United States Patent No. 5,406,260 (expired) • United States Patent No. 6,650,622 • United States Patent No. 7,457,250 • United States Patent No. 8,155,012 • United States Patent No. 8,902,760 • United States Patent No. 8,942,107 • United States Patent No. 9,019,838 • United States Patent No. 9,049,019 • United States Patent Application No. 14/695,456 • United States Patent Application No. 14/726,940 |
| System and Cable Requirements | Available full height (standard profile) PCI Express expansion slot |
| Available LP4 Molex or SATA power connector | |
| Indicators | |
| LED Indicators | 4 - Link/ Activity (green) |
| 4 - PoE Active (yellow) | |
| Power | |
| Output Voltage | 48 DC |
| Environmental | |
| Humidity | 10~90% RH (Non-condensing) |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | -40°C to 75°C (-40°F to 158°F) |
| Physical Characteristics | |
| Product Height | 4.7 in [120 mm] |
| Product Length | 9.6 in [243 mm] |
| Product Weight | 3.6 oz [102 g] |
| Product Width | 0.7 in [18 mm] |
| Packaging Information | |
| Shipping (Package) Weight | 15.1 oz [428 g] |
| What's in the Box | |
| Included in Package | 1 - PCI Express Network Card |
| 1 - Driver CD | |
| 1 - Instruction Manual | |
