StarTech Serial RS-232 -> Serial RS-422/485 F/M konverter 15KV ESD Protection fekete

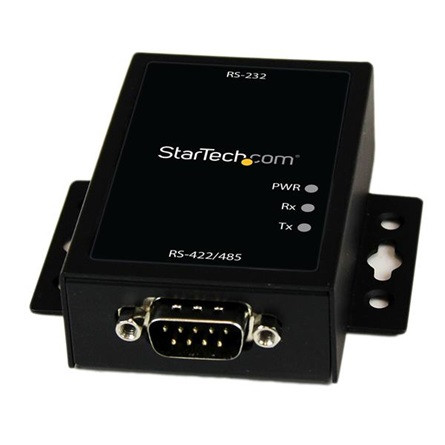

The IC232485S Industrial RS232 to RS-422/485 Serial Converter is a bi-directional adapter that lets you adapt an RS232 data signal to either RS485 (2 or 4-wire) or RS422 and vice-versa, with support for baud rates up to 921.6 Kbps. Ideal for industrial environments, the serial port converter provides 15KV ESD protection on all signal pins to protect costly and often sensitive control equipment against electrical damage. The serial converter features a sturdy wall-mountable metal housing with Power, Tx and Rx LED indicators for simple status monitoring. The adapter supports auto baud rate detection as well as RS-422 and RS485 mode detection, with an integrated dip switch for manual mode selection if needed, and supports connection distances of up to 4000ft (1200m). Backed by a 2-year StarTech.com warranty and free lifetime technical support. Hardware Interface Serial Port Style Cable Adapter Ports 2 Performance Max Baud Rate 921.6 Kbps Maximum Cable Length 3936 ft [1200 m] Serial Protocol RS-232/422/485 Connector(s) Connector Type(s) 1 - DB-9 (9 pin; D-Sub) Female 1 - DB-9 (9 pin; D-Sub) Male Indicators LED Indicators 1 - Power (Green) 1 - Rx (Yellow) 1 - Tx (Yellow) Power Center Tip Polarity Positive Input Current 0.3 A Input Voltage 110 ~ 240 AC Output Current 1 A Output Voltage 5 DC Plug Type M Power Source AC Adapter Included Environmental Humidity 5~85% RH Operating Temperature 0°C to 50°C (32°F to 122°F) Storage Temperature -20°C to 60°C (-4°F to 140°F) Physical Characteristics Color Black Enclosure Type Steel Product Height 0.9 in [22 mm] Product Length 4.6 in [117 mm] Product Weight 5.3 oz [150 g] Product Width 2.3 in [59 mm] Packaging Information Shipping (Package) Weight 10.1 oz [285 g] What's in the Box Included in Package 1 - RS-232 to RS-422/485 Converter 1 - Universal Power Adapter (NA/EU/UK) 1 - Instruction Manual
