StarTech Dual Port PCI-E x1 10/100/1000Mbps hálózati kártya PoE/PSE

Csomagajánlatok

• Részletek
• Adatok
• Vélemények

Részletek

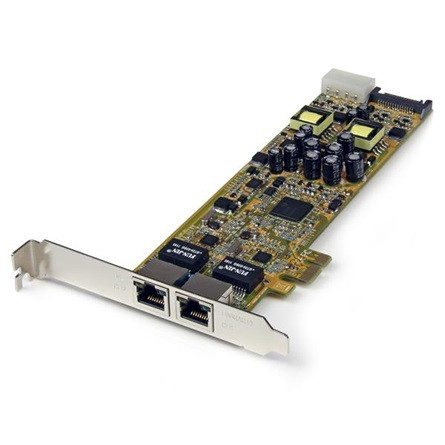

The ST2000PEXPSE Dual Port PoE NIC provides two 10/100/1000 Mbps PoE RJ45 ports that can provide up to 25.5W of power each, combining a network data connection and power on a single cable, for less clutter and convenient installations in remote locations.

This full/low profile Gigabit server adapter supports the IEEE 802.3at (Type 1 and 2) standard for a Power Sourcing Equipment (PSE) device, and can deliver 48V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and cable for remote networked devices such as IP cameras, IP phones and wireless access points.

Suitable for any PCI Express-enabled client, server or workstation, this versatile PoE network adapter supports features such as Jumbo Frames, VLAN tagging and Wake on LAN (WOL).

The ST2000PEXPSE PoE NIC is backed by a StarTech.com 2-year warranty and free lifetime technical support.



Hardware
Bus Type	PCI Express
Card Type	Standard Profile (LP bracket incl.)
Chipset ID	Realtek RTL8111E
Industry Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3at
Interface	RJ45 (Gigabit Ethernet)
Port Style	Integrated on Card
Ports	2
Performance
Auto MDIX	Yes
Buffer Size	48 KB
Compatible Networks	10/100/1000 Mbps
Full Duplex Support	Yes
Maximum Data Transfer Rate	1000 Mbps (uni-directional), 2000 Mbps (bi-directional)
MTBF	140,981 hours
Connector(s)
Connector Type(s)	1 - PCI Express x1 Male
External Ports	2 - RJ-45 Female
Internal Ports	1 - LP4 (4 pin; Molex Large Drive Power) Male
	1 - SATA Power (15 pin) Plug
Software
OS Compatibility	Windows® 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2012 R2 Mac OS X® 10.6 to 10.9 Linux 2.4.x to 4.4.x LTS Versions Only
Special Notes / Requirements
Patents and Licenses	The following patents are licensed for this product. This list might not be all inclusive. • United States Patent No. 5,406,260 (expired) • United States Patent No. 6,650,622 • United States Patent No. 7,457,250 • United States Patent No. 8,155,012 • United States Patent No. 8,902,760 • United States Patent No. 8,942,107 • United States Patent No. 9,019,838 • United States Patent No. 9,049,019 • United States Patent Application No. 14/695,456 • United States Patent Application No. 14/726,940
System and Cable Requirements	Available full/low profile PCI Express expansion slot
	Available LP4 Molex or SATA power connector
Indicators
LED Indicators	2 - Link/ Activity (green)
	2 - PoE Active (yellow)
Power
Output Voltage	48 DC
Environmental
Humidity	5% ~ 95% RH
Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-20°C to 85°C (-4°F to 185°F)
Physical Characteristics
Product Height	68 mm [2.7 in]
Product Length	195 mm [7.7 in]
Product Weight	106 g [3.7 oz]
Product Width	19 mm [0.7 in]
Packaging Information
Shipping (Package) Weight	245 g [8.6 oz]
What's in the Box
Included in Package	1 - PCI Express Network Card
	1 - Low Profile Bracket
	1 - Driver CD
	1 - Instruction Manual
